We can customize the low bed truck trailer for you according to your needs. Low bed trucks are used in different industries: heavy vehicles, rail vehicles, mining machinery, forestry machinery, construction, agricultural, etc.
SINOTRUCKSenegal tri axle 80t low bed truck trailer is widely used in heavy machines transportation.
The main beam of SINOTRUCKSenegal low bed truck trailer is made of Q460C high strength structural steel. Q460C steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times that of the trailer made of Q345 steel. We use it to make sure that our SINOTRUCKSenegal Excavator Trailers is with a long service life and to avoid unnecessary maintenance.
Used 3 Axles Semi Low Bed Trailers Price for Sale in Senegal Kalolack
Used 3 Axles Semi Low Bed Trailers Price for Sale in Senegal Kalolack

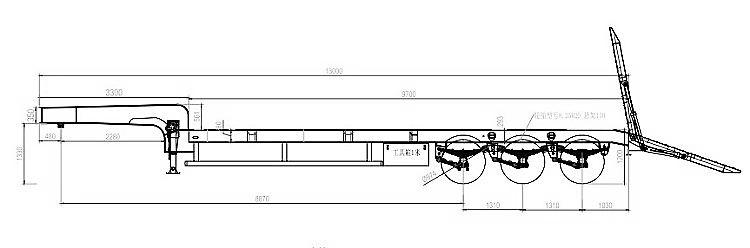

Overall dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 80T
Axle: 3 axles, 13T/16T, FUWA/BPW/SINOTRUCKSenegal Brand
Tire: 12 units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand

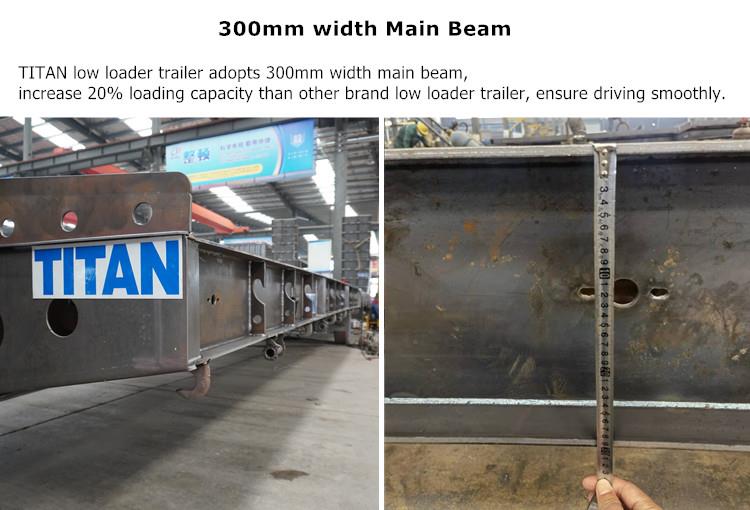

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
1. Main beam adopts HG high strength steel, with high loading capacity.
2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.
3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
4. polyurethane paint, with long service lift, and avoid the vehicle get rust.
5. World famous brand spare part, ensure high quality and save costs.

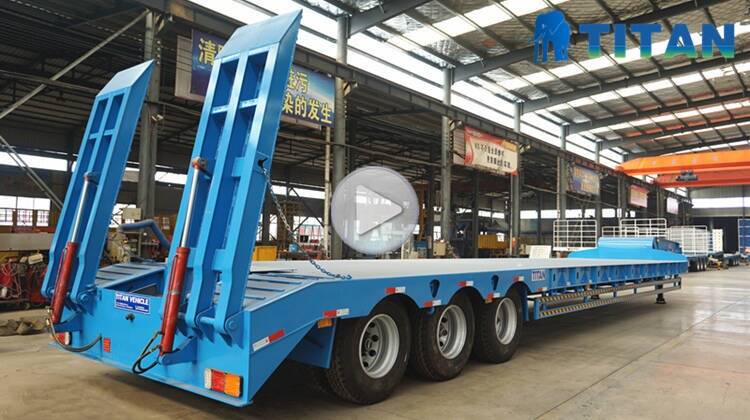

3 Axle Lowbed trailer details display video
|
