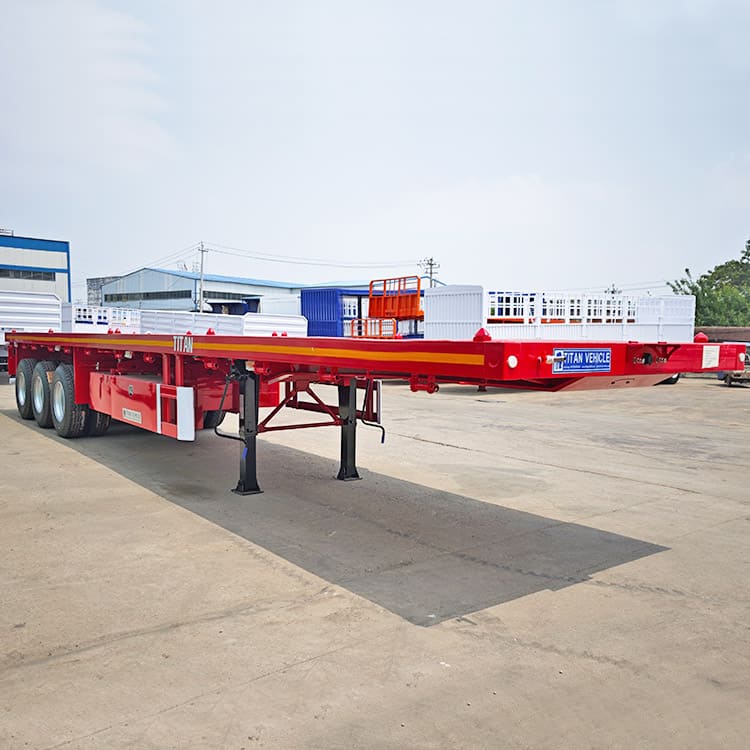

The tri axle flatbed trailer is built to handle the load of both bulk goods and standard containers, offering greater flexibility to meet various transport requirements. It can carry either 20-foot or 40-foot containers, making a practical choice for both short hauls and long distance freight operations.

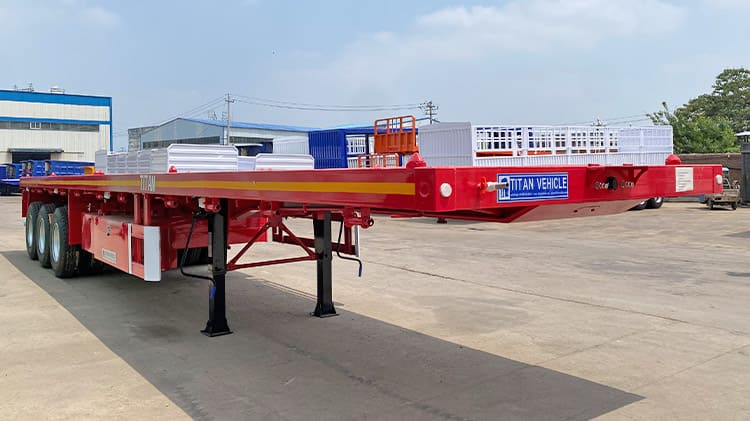

The 40 feet flatbed trailer has been optimized through a series of structural upgrades to meet Senegal transportation regulations and ensure reliable performance during use. The main body of the flatbed trailer is designed for stable and efficient transport of containers and general cargo.
Thanks to the carefully engineered structure, weight is evenly spread across the tri axle new flatbed trailers for sale frame, reducing pressure points that might otherwise lead to bending or damage under heavy loads. For transporters focused on strength and long term durability, the TITAN flatbed trailer provides consistent performance and a longer operational lifespan.

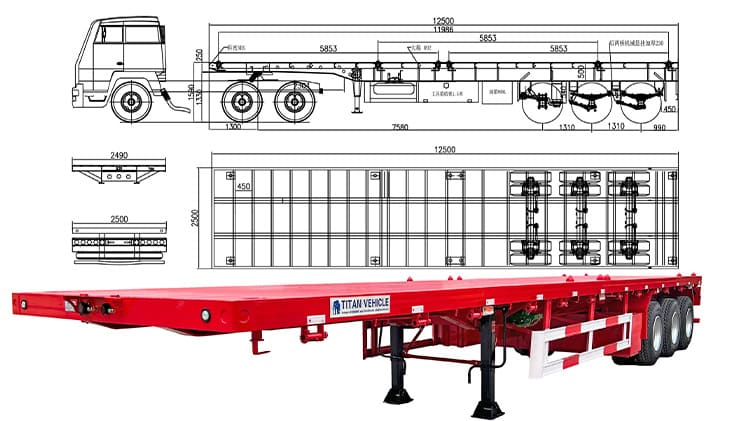

Overall Dimension: 12500mm*2500mm*1590mm
Load Capacity: 60 ton
Floor Plate: thickened pattern floor plate
Side Beam: 160mm high

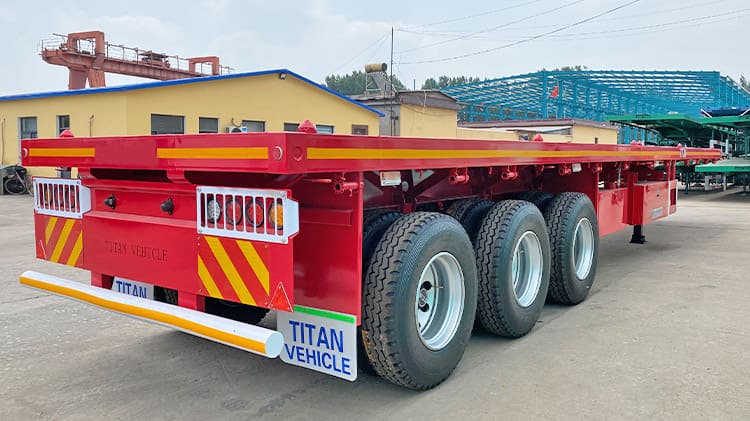

Axles: 3 axles, 13 ton
Tire: 12 units, 12R22.5
Landing Gear: 28 ton
Bumper: 4mm thick
Lamp: LED Lamp with protective net
Trailer Feature: large capacity fuel tank
Leaf Spring: 10 layers
Suspension: mechanical suspension

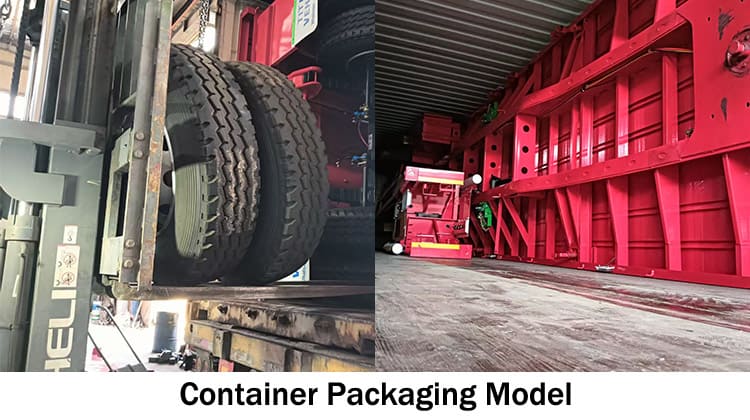

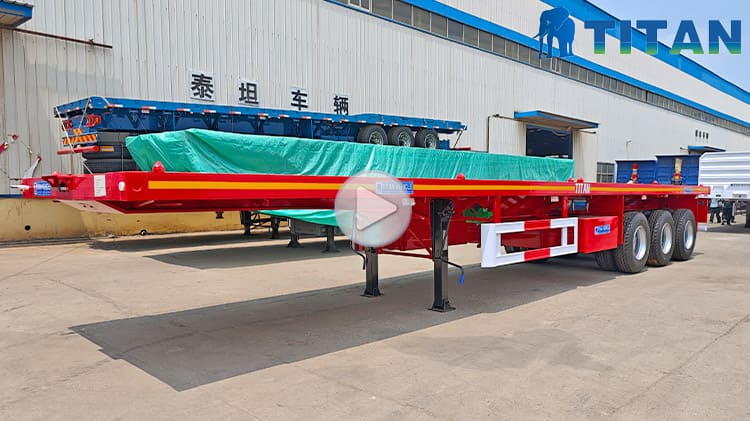

Prior to shipment, protective measures are implemented to preserve the 40 feet flatbed trailer condition. A protective wax layer is sprayed across all exposed surfaces to prevent rust formation. Additionally, the entire trailer is covered with a waterproof tarp, safeguarding it from exposure to moisture, sea spray, and damp air during shipping. The layered protection ensures that the new flatbed trailers for sale arrives in excellent condition and ready for use.

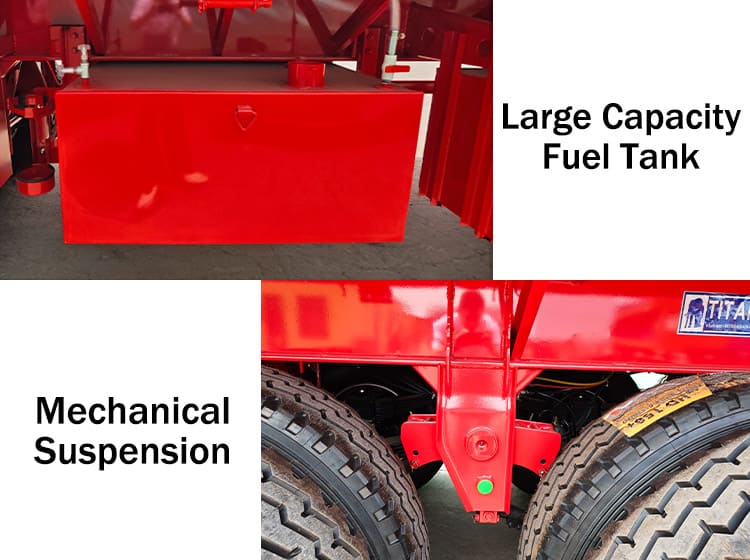

An added advantage of the tri axle 40 feet flatbed trailer is its integrated fuel tank, which allows operators to store sufficient fuel before starting a trip. The design eliminates the need for frequent refueling stops, significantly boosting transport efficiency.
The tank is built from high strength steel, giving it the ability to perform reliably even in high-temperature conditions and ensuring continuous operation of the 40ft flatbed trailer during long hauls.
To support heavy-duty applications, the new flatbed trailers for sale frame is constructed from Q355 low-carbon alloy steel, a material known for both strength and toughness. This improves the 40 feet flatbed trailer ability to handle heavy cargo while minimizing frame stress. The use of automatic submerged arc welding ensures strong joints between components, helping to maintain the integrity and shape of the trailer frame under load.
At critical connection points, the gooseneck area is reinforced with a double-layered design, enhancing its ability to bear weight and minimizing the risk of warping during operation. This structural reinforcement contributes to the new flatbed trailers for sale dependability in long distance and heavy load transportation.

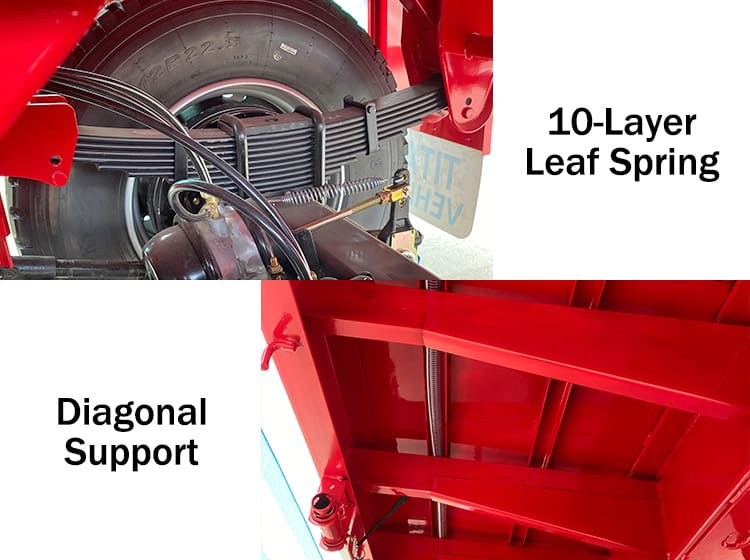

Supporting elements of the frame, such as the main beam and cross members, are connected through a system of diagonal braces. These are spaced within 500mm to evenly distribute pressure throughout the flatbed trailer body.
The design choice helps maintain the chassis stability and reduces the possibility of frame deformation during intense use. The cross member itself is constructed from 100mm thickened channel steel, further strengthening the 40 feet flatbed trailer load-bearing ability during demanding operations in Senegal.
The new flatbed trailers for sale floor plate is carefully selected to suit the nature of transported goods. A patterned steel plate is used for the surface, chosen for its high friction, attractive appearance, and strong structural support.
Made from high-strength steel, the floor resists wear and provides a certain degree of corrosion resistance. This is particularly valuable in Senegal environments, helping to prevent rust and support long term operational stability.
The open platform structure of the 40 feet flatbed trailer enhances its adaptability when transporting bulk cargo or standard containers. The flat surface can accommodate both 20ft and 40ft containers, making it suitable for diverse logistics requirements.

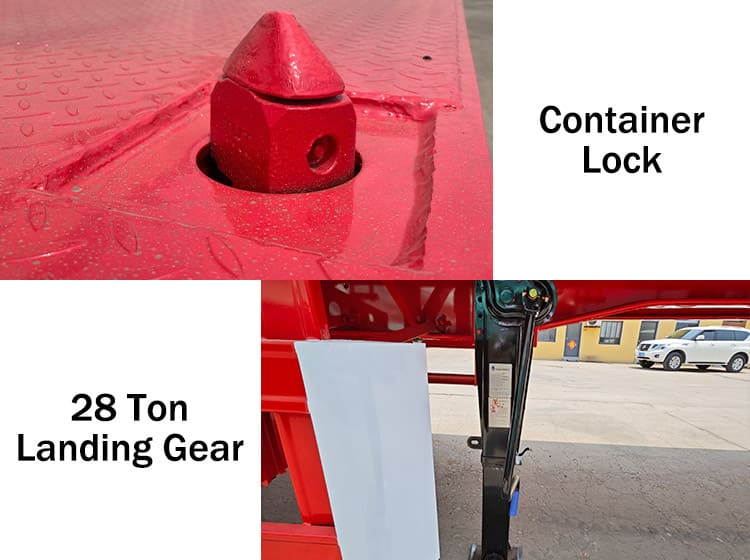

The new flatbed trailers for sale includes 12 container locks, allowing operators to quickly and securely fasten the container by aligning the lock points with the container corners. This design simplifies the process of securing loads and shortens loading times.
|
