100T Lowbed Trailer for Sale

Excavator Trailer:

4 axle 100 ton excavator trailer use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload.

We adopt famous brand parts, like WABCO braking valve, JOST legs, FUWA, BPW axles. This’ll ensure the long service life of the 100t lowbed for sale.

Prices of 4 Axle 100T Lowbed Transport Excavator Trailer for Sale in Senegal Rufisque

Prices of 4 Axle 100T Lowbed Transport Excavator Trailer for Sale in Senegal Rufisque

Prices of 4 Axle 100T Lowbed Transport Excavator Trailer for Sale in Senegal Rufisque

Excavator Trailer Specification:

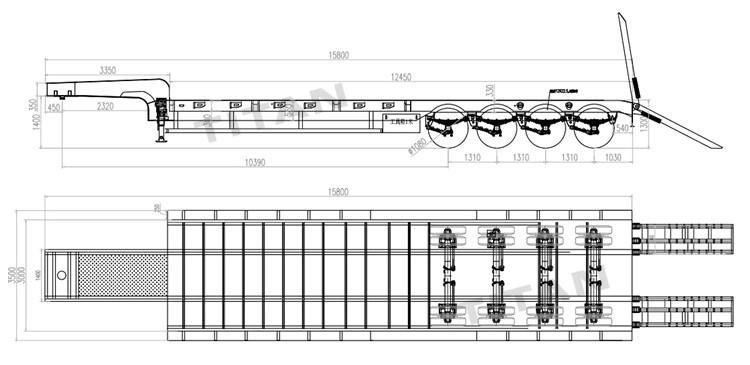

Overall dimension: 15800mm * 3000mm *3400mm

Loading capacity(T): 100T

Axle: 13T/16T, FUWA / BPW

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Advantage of lowbed transport:

1. Main beam adopts HG60 high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service life, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.

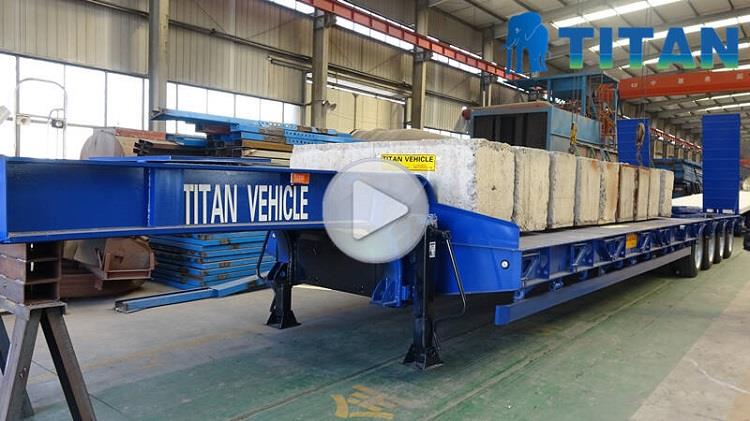

4 Axle 100 Ton Excavator Trailer details display video

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
