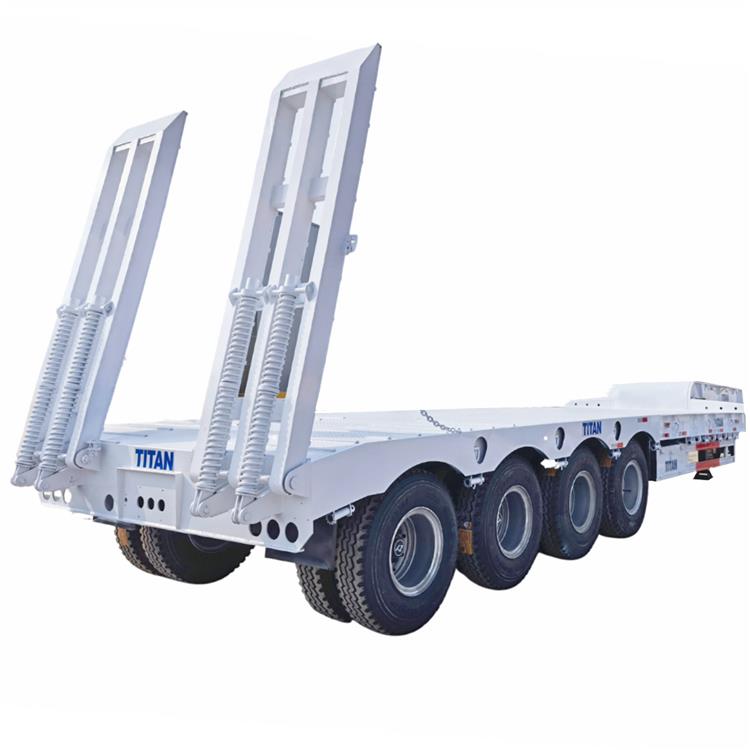

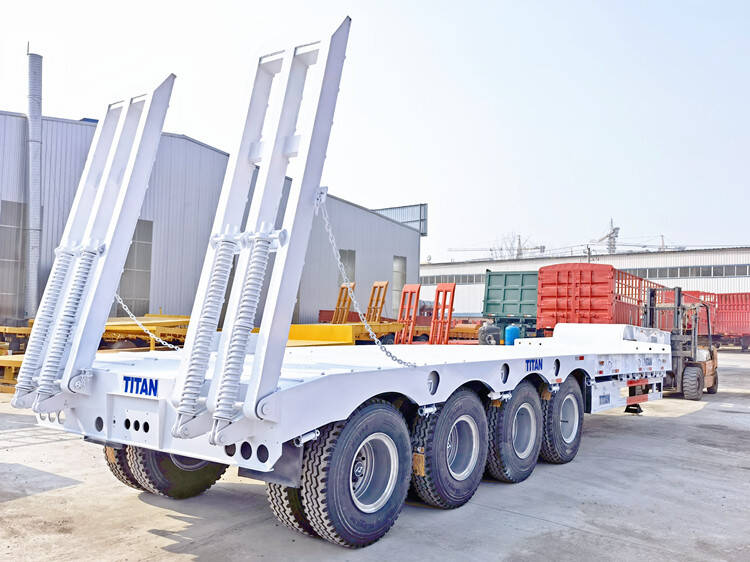

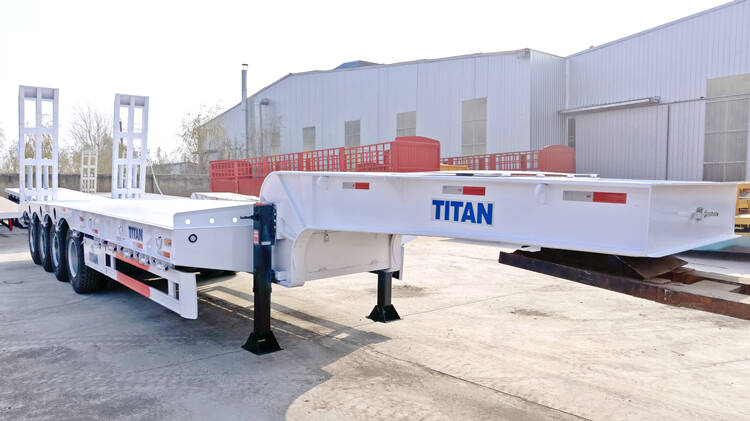

4 axle low bed truck trailer use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload.
Before production, SINOTRUCKSenegal technical department must first design and produce drawings according to the needs of the user and the market, so that the technical parameters of the main trailer are matched, and then transferred to the manufacturing department. There are dimensions and specs drawing of different types of 4 axle low bed truck.

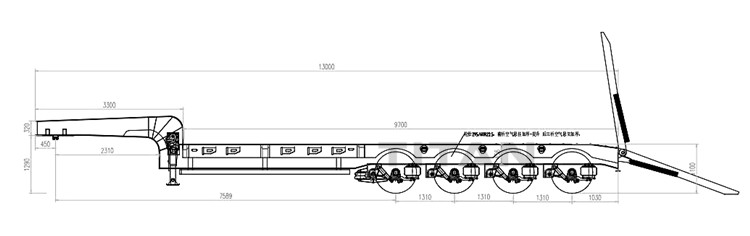

4 Axle Low Bed Truck Trailer Dimensions Height Capacity
4 Axle Low Bed Truck Trailer Dimensions Height Capacity

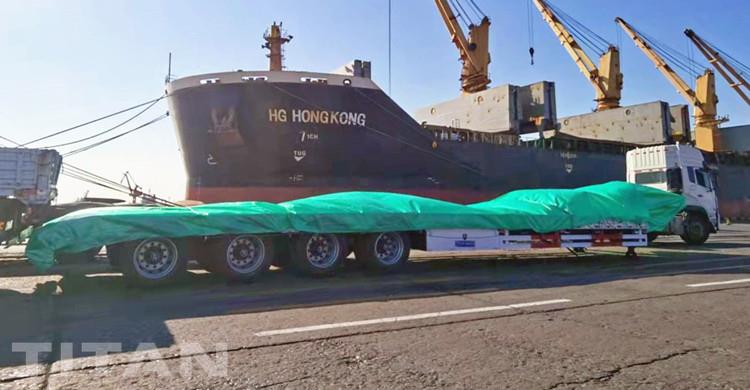

Package of 4 Axle Low Bed Truck Trailer
Low bed trailer loading capacity
4 axle low bed trailer loading capacity: 100 ton
Lowbed trailer dimensions
4 axle low bed trailer standard size: 13000mm*3000mm*3400mm
Low bed trailer weight
4 axle low bed trailer: 11-13 ton
Low bed trailer width
3000mm, 3 meter, Most used
low bed trailer length
13000 mm, customize to your needs.
low bed trailer height from ground
750mm
Low bed trailer axle
4 axles, BPW, FUWA
Low bed trailer tires
16 units, 11.00R20
Low bed trailer suspension
Mechanical suspension
1. Main beam adopts HG high strength steel, with high loading capacity.
2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.
3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
4. polyurethane paint, with long service lift, and avoid the vehicle get rust.
5. World famous brand spare part, ensure high quality and save costs.

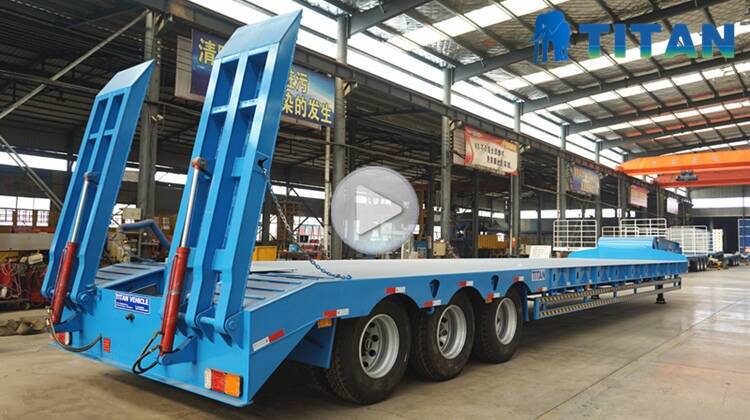

Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
|
